Ideal for malls, offices, and business buildings requiring high strength.
About 550 D Bar
Shree Krushna 550 D Bar is a premium quality TMT steel bar specially designed for modern construction needs. Manufactured with advanced technology and strict quality standards, these bars offer high strength, excellent flexibility, and long-lasting durability.
The 550 D Bar is ideal for structures that require strong reinforcement with better resistance to stress, bending, and heavy loads. Its superior bonding with concrete helps create safer and stronger buildings.
With excellent weldability and corrosion resistance, Shree Krushna 550 D Bars are trusted for residential, commercial, and infrastructure projects.
Engineered for Strength
Explore our TMT bar in 3D — drag to rotate and inspect every detail.
The 3D model could not load. Re-save Customizer with an https:// .glb URL, then purge LiteSpeed cache. If it still fails, ask Hostinger to serve .glb as model/gltf-binary.
Used in
Ensures structural stability and load-bearing capacity for tall buildings.
Offers reliable support for heavy traffic and long-span structures.
Strengthens the core structure for long-term safety and durability.
Enhances concrete strength and prevents structural cracks.
Why Choose 550 D Bar
Built for heavy load performance and structural safety.
Shree Krushna 550 D Bars are manufactured to handle high stress and pressure, making them ideal for columns, beams, foundations, and large construction projects where strength is critical.
Best Used In
- High-rise buildings
- Bridges
- Industrial structures
Long-lasting protection against rust and moisture damage.
The bars are designed to resist corrosion caused by humidity, water exposure, and changing weather conditions, helping extend the life of the structure.
Best Used In
- Coastal areas
- Water tanks
- Basements
- Outdoor projects
Easy shaping without compromising strength.
These bars provide excellent flexibility, allowing easier cutting and bending during construction while maintaining structural integrity.
Applications
- Curved designs
- Beams
- Slabs
- Custom frameworks
Better grip inside concrete for stronger structures.
The ribbed surface ensures firm bonding with concrete, reducing slippage and improving the overall stability of the construction.
Applications
- Foundations
- Columns
- Slabs
- Retaining walls
Built for heavy load performance and structural safety.
Shree Krushna 550 D Bars are manufactured to handle high stress and pressure, making them ideal for columns, beams, foundations, and large construction projects where strength is critical.
Best Used In
- High-rise buildings
- Bridges
- Industrial structures
Long-lasting protection against rust and moisture damage.
The bars are designed to resist corrosion caused by humidity, water exposure, and changing weather conditions, helping extend the life of the structure.
Best Used In
- Coastal areas
- Water tanks
- Basements
- Outdoor projects
Easy shaping without compromising strength.
These bars provide excellent flexibility, allowing easier cutting and bending during construction while maintaining structural integrity.
Applications
- Curved designs
- Beams
- Slabs
- Custom frameworks
Better grip inside concrete for stronger structures.
The ribbed surface ensures firm bonding with concrete, reducing slippage and improving the overall stability of the construction.
Applications
- Foundations
- Columns
- Slabs
- Retaining walls
Product Specifications
Parameter
Details
Product NameShree Krushna 550 D Bar
GradeFe 550 D
MaterialHigh Quality TMT Steel
Available Sizes8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 32mm
Standard Length12 Meter (Approx.)
StrengthHigh Tensile Strength
BendabilityExcellent Flexibility
Surface TypeRibbed for Strong Concrete Bonding
Corrosion ResistanceYes
WeldabilityGood
ApplicationConstruction & Infrastructure
Quality StandardISI Standard
FinishPremium Mill Finish
01 Mechanical Properties of 550 D TMT Bar
| Grade | Fe 415 | Fe 500 | Fe 550 | SHRI KRUSHNA TMT |
|---|---|---|---|---|
| Yield stress (n/sq.mm) | >415 | >500 | >550 | >550 |
| Tensile strength (n/sq.m) | >485 | >545 | >585 | >640 |
| Elongation% | >14.5% | >12% | >10% | >16% |
02 Chemical Properties of 550 D TMT Bar
| Grade | Fe 415 | Fe 500 | Fe 550 | SHRI KRUSHNA TMT |
|---|---|---|---|---|
| Carbon % | <0.30% | <0.30% | <0.30% | <0.25% |
| Sulphur % | <0.060% | <0.055% | <0.055% | <0.050% |
| Phosphorus % | <0.060% | <0.055% | <0.050% | <0.050% |
| Sulphur & phosphorus % | <0.11% | <0.105% | <0.10% | <0.10% |
| Manganese % | 0.5% to 1.0% | 0.5% to 1.0% | 0.5% to 1.0% | 0.5% to 1.0% |
| CE % | <0.42% | <0.42% | <0.42% | <0.40% |
03 Saving in Weight and Cost of Construction by Shree Krushna TMT Bar
| Grade | TMT Fe 415 | TMT Fe 500 | SHRI KRUSHNA TMT |
|---|---|---|---|
| Yield Strength | 415 N/mm2 | 500 N/mm2 | 550 N/mm2 |
| Weight Required | 1,000 MT | 0.854 MT | 0.809 MT |
| Saving in Weight | - | 14.6% | 19.15% |
Manufacturing Process

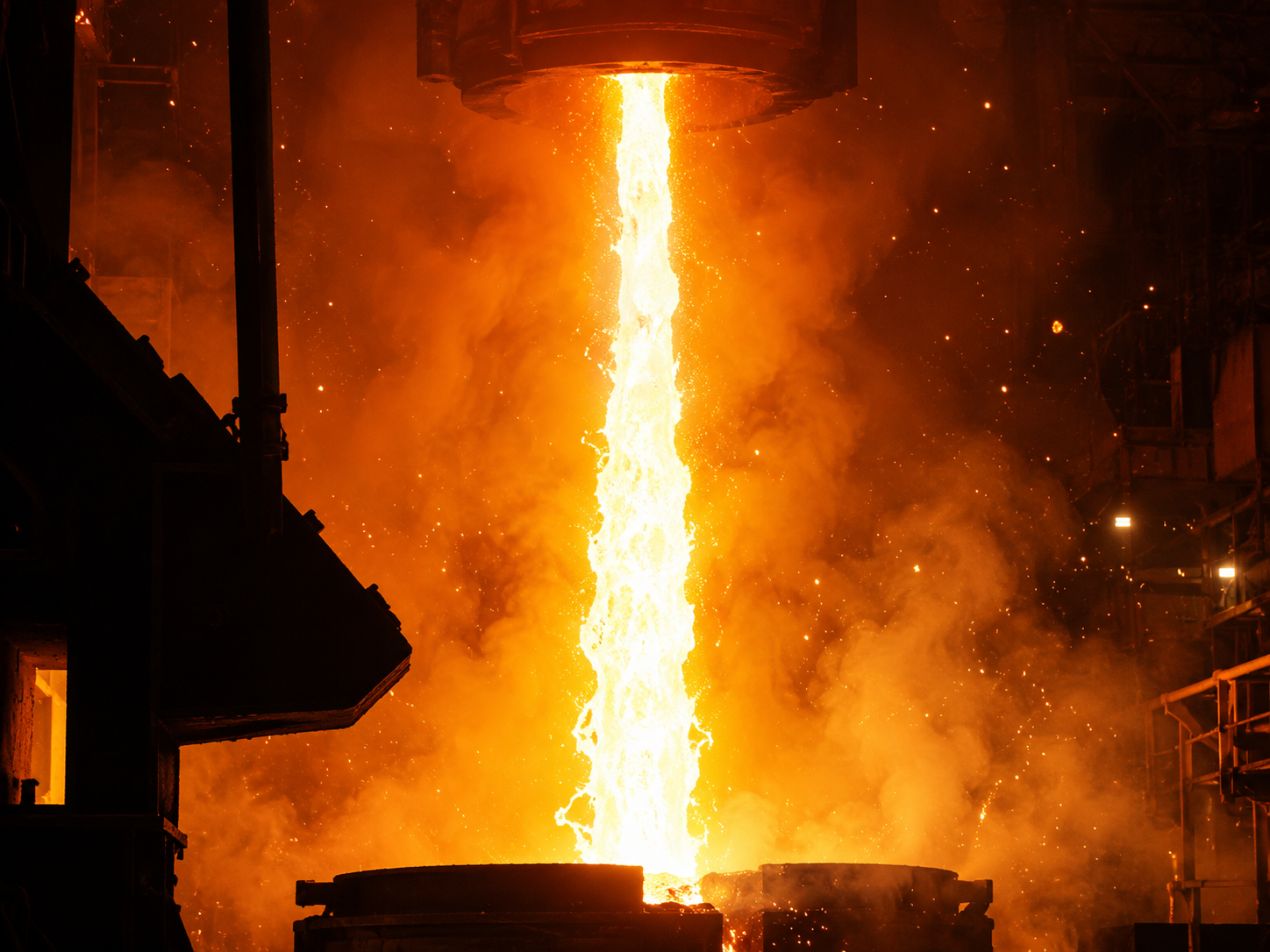

Melting & Refining
- Raw Material Selection: High-grade raw materials are carefully sourced to ensure superior TMT steel quality.
- Induction Furnace: Materials are melted in in-house induction furnaces, where molten metal is efficiently separated from slag.
- Purging & Refining: The molten steel is refined in a ladle furnace using purging and controlled chemical additions to remove impurities and achieve precise composition. Advanced spectrometer analysis ensures optimal weldability, strength, ductility, and elongation, meeting stringent industry standards

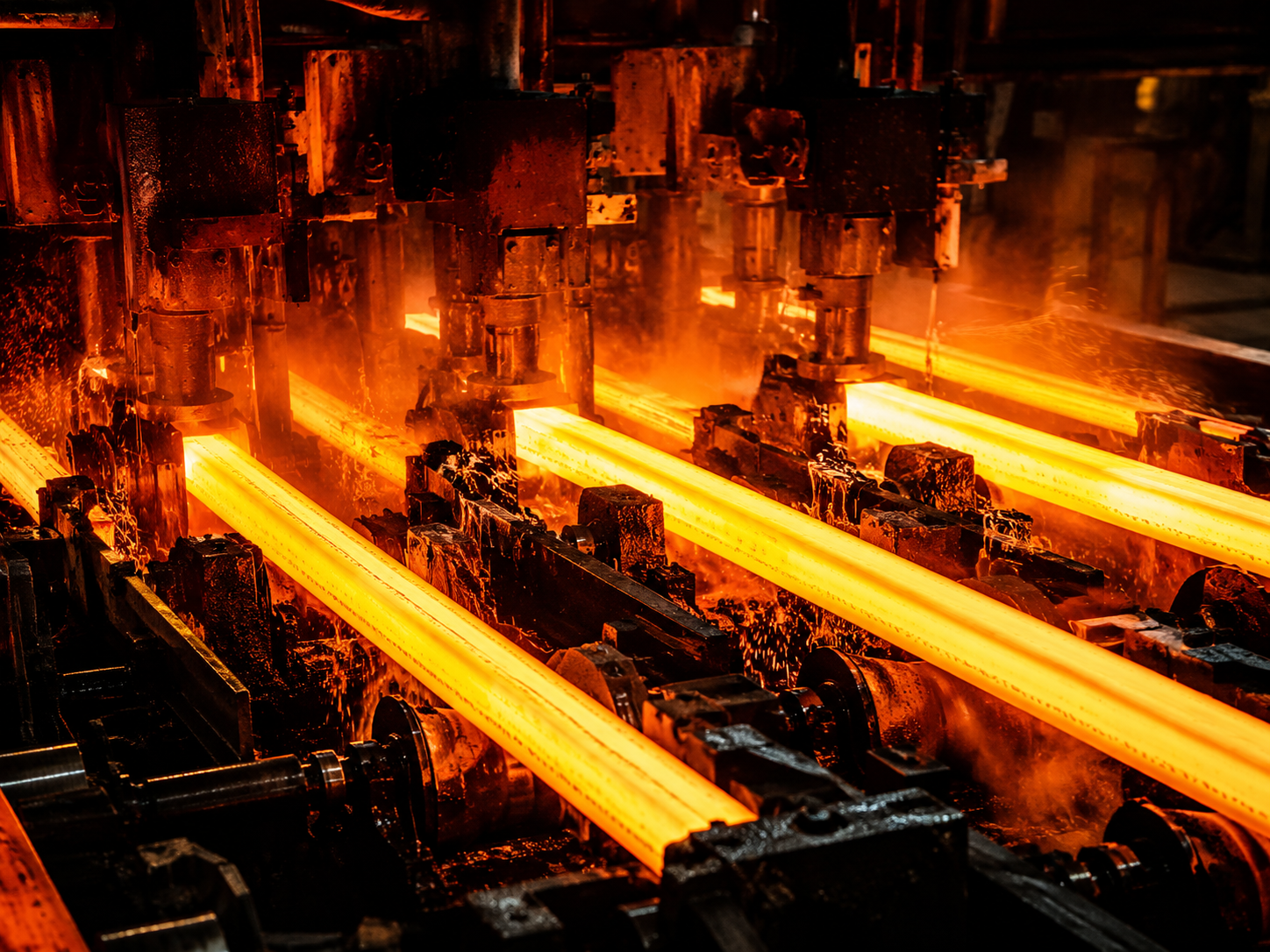

Continuous Casting
- Continuous casting is a critical stage in TMT bar manufacturing, where molten metal is solidified into predefined sections through a controlled and continuous process. Fresh molten metal is consistently fed into the mold to maintain uniform solidification.
- Our advanced continuous casting system enhances yield, productivity, and cost efficiency while ensuring consistent quality. Leveraging precision engineering and modern technology, it enables the seamless conversion of molten metal into accurately shaped, high-strength steel billets.

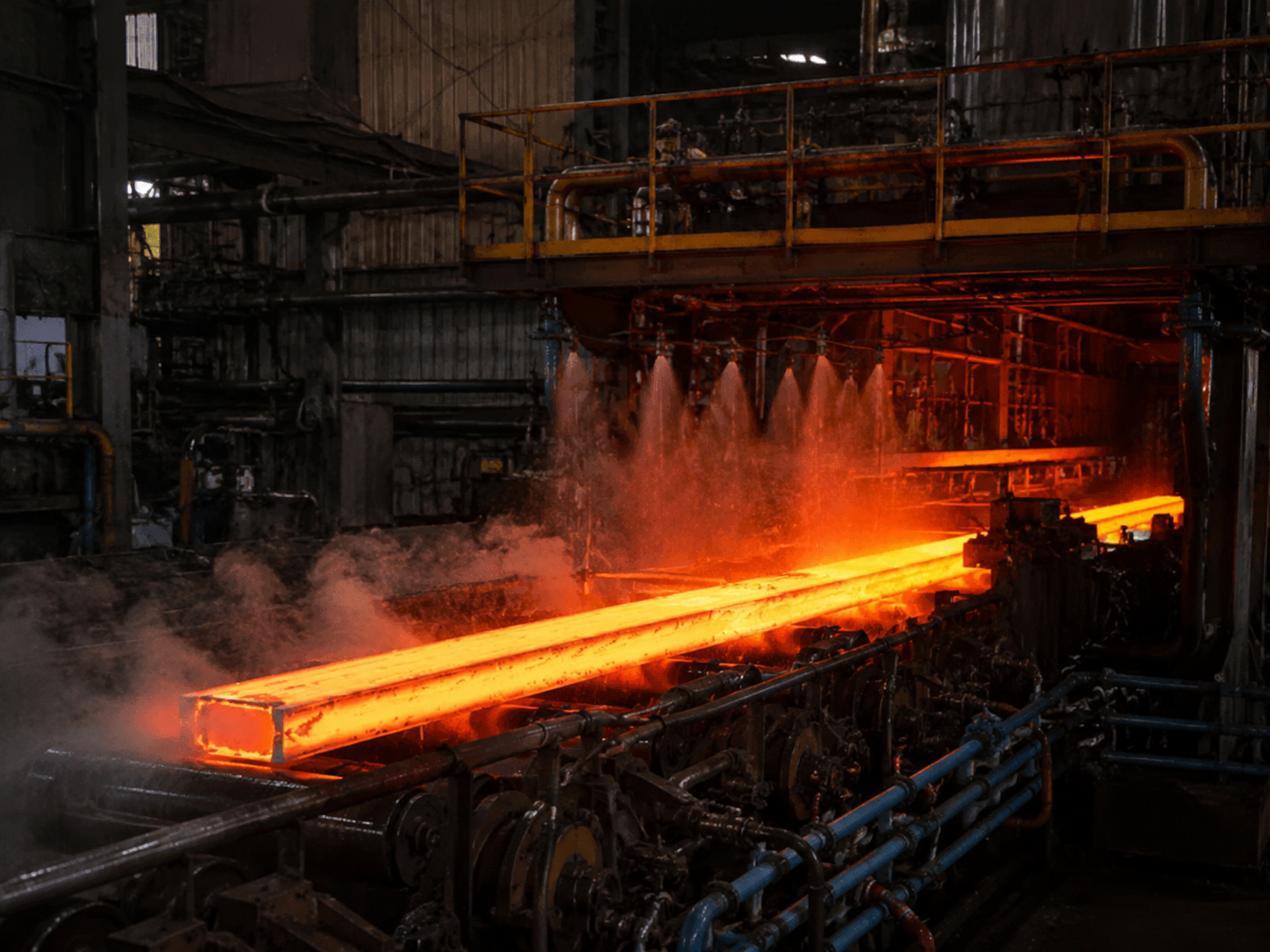

Secondary Cooling & Hot Charging
- After continuous casting, billets pass through a secondary cooling chamber where controlled water spraying ensures complete solidification, dimensional stability, and improved structural integrity.
- The solidified billets are then reheated in a furnace to achieve recrystallization, enhancing material properties and minimizing losses. This process preserves metallurgical integrity during rolling, resulting in superior-quality TMT bars. Our Next Gen 3X Ribbed Bars are engineered to deliver optimal steel and cement bonding, ensuring exceptional strength and performance.

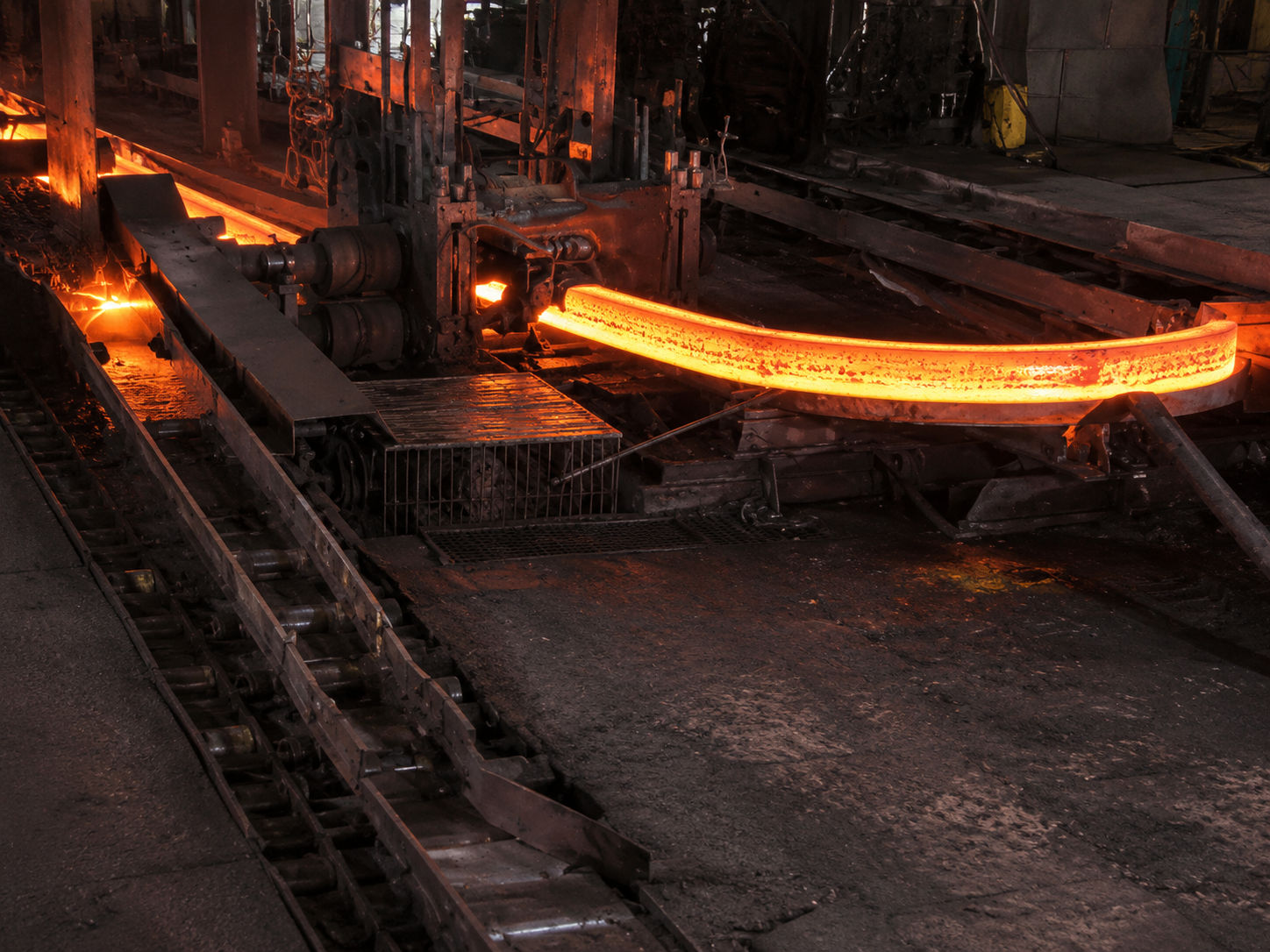

Rolling Mill
- Recrystallized billets are conveyed to a state-of-the-art rolling mill for precision processing. Using internationally recognized roll pass design, the process enhances strength, elongation, and ensures uniform properties along the bar length.
- TMT bars produced from billets offer superior quality compared to ingot-based bars. Our in-house induction furnaces enable complete control over billet production, ensuring consistent quality from raw material to finished product.

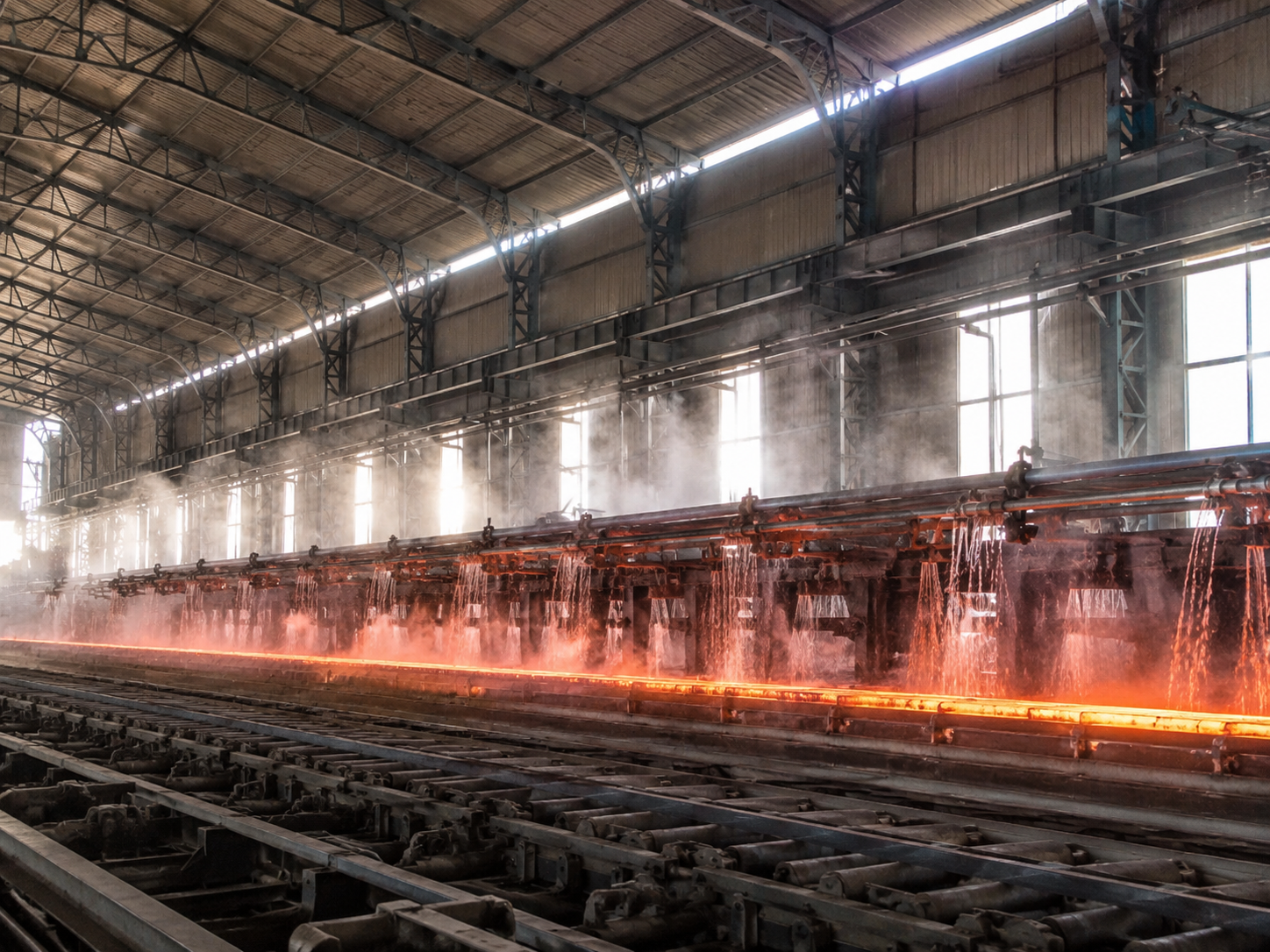

Quenching & Self-tempering
- After exiting the finishing mill, rebars enter a water-cooling chamber for quenching using advanced German QST technology, producing high-strength, flexible ribbed TMT bars suitable for premium infrastructure.
- The process involves three stages:
- Rapid Quenching: Immediate surface hardening as bars leave the final mill stand.
- Self-Tempering: Residual core heat tempers the hardened surface layer.
- Air Cooling: Uniform cooling on a cooling bed to stabilize the microstructure.
- This controlled treatment ensures superior strength, ductility, bendability, weldability, and enhanced resistance to corrosion.
Quality Process Management
Step - 1
Raw Material
Step - 2
At Laddle, QA of Liquid Metal
Step - 3
Billet QA & QC
Step - 4
Finished Goods / Final QC Release
Step - 5
Chemical Purity Test
Step - 6
The Hardness Test
Step - 7
Splitting tendency check
Step - 8
Ductility test
Step - 9
Fatigue and compression test
Step - 10
impact, wear resistance test, corrosion test
Today's 550 D TMT Bar Price Table
| Section | Recommended TMT Price |
|---|---|
| 8 mm | 392 (Per Piece) |
| 10 mm | 597 (Per Piece) |
| 12 mm | 839 (Per Piece) |
| 16 mm | 1523 (Per Piece) |
| 20 mm | 2418 (Per Piece) |
| 25 mm | 3737 (Per Piece) |
| 32 mm | 6488 (Per Piece) |
Let's Build Something Great Together
Got a bulk order? Running a large infrastructure project? Our team is ready to help with reliable supply, expert guidance, and zero run-around.
